Thermal Power Stations



Thermal Power Stations

Work theory:

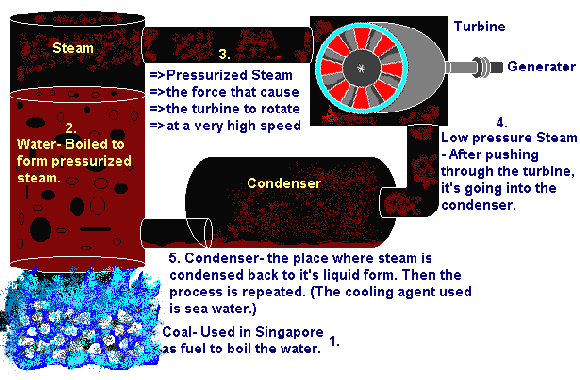

Heat water and turn it into steam, which is directed to the turbine blades, and it turns and the generator rotates with it, producing an electric current.

Features

1. The largest capacity (the largest unit is 627 MW)

2. The life span is greater

3. It increases the stability of the network

4. Efficiency 35% - 42%

5. Operating cost is normal

Defects

1- The construction cost is high

2- The equipment takes a lot of space

3- They are only built near the water source

4- The length of time to access the network (it takes from 5 to 7 hours)
